Cost-Effective Tailored Laser Diode Solutions | Find Your IDEAL Laser Diode
From Chip Design to Packaging & Ruggedization – Unlimited Customization Possibilities
Wavelength
One of the broadest ranges available: Visible (445–750 nm), Near-IR (750–1400 nm), and SWIR (1400–1850+ nm). Custom wafer growth and EPI tuning allow precise wavelength selection when standard options don’t fit.
Power & Chip Designs

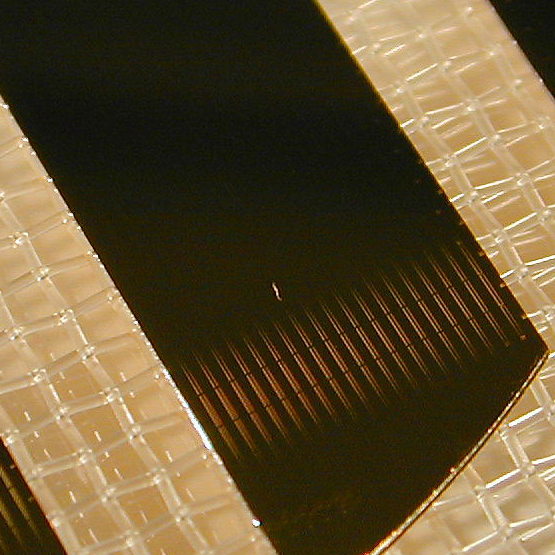

Scalable from 100 mW to 16 W+. We optimize emitter width, cavity length, chip/bar geometry, and gain structure for higher efficiency, power, or specific application needs.
Packaging

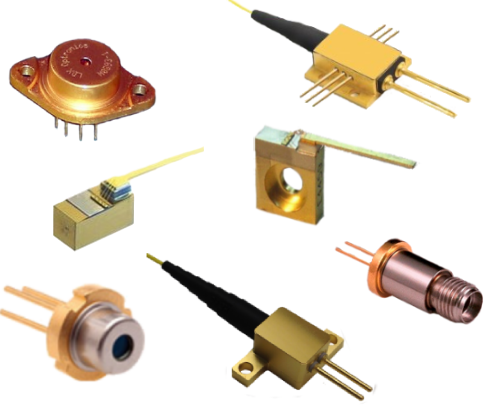

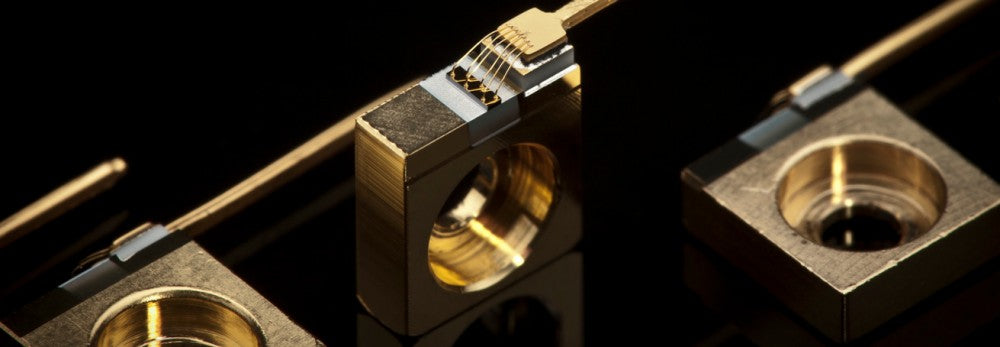

Wide selection: C-mount, B-mount, Q-mount, chip-on-submount, 9 mm, TO-3, HHL, open heatsinks, arrays & fiber-coupled formats. Production-integrated add-ons: aiming beam, TEC, photodiode, or hermetic sealing.
Beam Output & Lensing
Fast-axis collimation (FAC), micro-lens assemblies, and custom optics for squared, defocused, or high-efficiency coupled beams – tailored to minimize divergence and maximize system performance.
Environmental & Ruggedization
Space-qualifiable designs with inherent shock/vibration resistance, hermetic sealing for vacuum/radiation/thermal extremes, and options for extended qualification testing.
Soldering & Thermal Management
Advanced flux/void-free processes using hard AuSn (high-reliability/high-temp) or soft In (reworkability). Electrically isolated packages & p-side-down mounting ensure optimal heat dissipation & grounding compatibility.
Get started defining the ideal tailored solution for your application requirements:
Our Commitment to You
Our goal is to provide the following:
- Technical staff – in-depth product knowledge
- Selection assistance – choosing the best laser for your application
- Quality technical advice – permitting informed decisions
- Responses to every inquiry – typically the same day
- An attractive value proposition – the best laser at a fair price
- High-quality support – through the entire process
Unique Problems Require Tailored Solutions
Customer's Dilemma:
A dental equipment manufacturer needed assistance in developing a 4W 808nm laser diode in a 9mm package, since there were no standard products on the market that fit the specifications.
LDX's Tailored Solution:
A dental equipment manufacturer needed assistance in developing a 4W 808nm laser diode in a 9mm package, since there were no standard products on the market that fit the specifications.
Customer's Dilemma:
A customer needed a special wavelength laser diode with a specific lensing requirement in a hermetically sealed HHL package.
LDX's Tailored Solution:
We provided the wavelength needed, developed the lensing specification that met the customer’s needs, and provide the laser diode, lensing, TEC, and PD in a hermetically sealed HHL package.
Customer's Dilemma:
A medical company was introducing a new device, but their current laser diode supplier was not able to meet the quality requirements, price constants, or the volumes needed.
LDX's Tailored Solution:
LDX was able to design a drop-in replacement that met all their quality requirements, reduced the unit price in higher volumes, and with the manufacturing facilities in place to meet the volumes needed by the customer.
Customer's Dilemma:
An industrial manufacturer required a high-power multimode laser diode at a non-standard wavelength with superior thermal management and rugged packaging for continuous high-duty-cycle materials processing in a harsh factory environment.
LDX's Tailored Solution:
We customized an IR multimode diode with optimized emitter design for higher efficiency/power, flux/void-free AuSn soldering, integrated TEC for high-heat stability, and a hermetically sealed HHL package with optional fast-axis collimation—delivering reliable output that met the customer’s exact needs.
Your search is over. The exact laser solution you need is waiting for you!
